What Buyers Look for in an IP66 Aluminum LED Cabinet Factory
When sourcing outdoor LED displays, buyers consistently raise the same concerns: energy consumption, heat buildup, fire risk from non-metallic cabinets, heavy steel enclosures that drive up transportation and installation costs, difficult maintenance access, and exposed cables vulnerable to pest damage. These pain points define what a serious manufacturing partner must solve before a display ever leaves the factory floor. WHALEY-LED is the exclusive overseas brand of Shenzhen Showho, developed its WC Series outdoor LED display line specifically around these industry challenges, positioning itself as the creator of common-cathode IP66 aluminum module LED displays worldwide.
The Engineering Behind WC Series Outdoor LED Displays
The WC Series is built around four pillars: safety, energy efficiency, reliability, and convenient installation and maintenance. Each pillar corresponds directly to a pain point commonly reported in outdoor display deployments.
Common-Cathode Power Architecture for Energy Savings
Rather than relying on common-anode technology, the WC Series uses a common-cathode power architecture that independently powers red, green, and blue LEDs at accurately matched voltages—specifically 2.8V for red LEDs and 3.8V for blue and green LEDs. In this design, current flows from the drive circuit to the LED anode, passes through the LED, and reaches the common cathode, producing a lower forward voltage drop. This approach lowers overall energy consumption by 20%-30% compared with common-anode technology and reduces screen temperature by about 15°C, meaning passive cooling can operate without fans in many configurations.
All-Aluminum Cabinet Construction for Fire Safety
Fire risk from non-metallic cabinets is a documented concern in outdoor display environments. The WC Series addresses this with an all-aluminum module and cabinet construction. Aluminum has a melting point of 660°C, strength of 390-420 MPa, and a recovery rate of 85%, compared with plastic components that melt at 170°C, carry strength of only 30-50 MPa, and recover at just 1%. The module, cabinet, and power box are CNC integrated die-cast with high accuracy and good flatness, achieving a tensile strength up to 900 MPa. This all-aluminum approach reduces the possibility of display fire while also improving heat dissipation: aluminum conducts heat through free electron movement at 237 W/(m·K), compared with plastic's reliance on molecular chain vibration at just 0.037 W/(m·K).
IP66 Protection and Reliability
Every WC Series cabinet carries an IP66 protection rating, a specification designed to help prevent blackout in outdoor conditions. For installations requiring additional uptime assurance, an optional current-sharing backup power feature is available: when one or more power supplies fail, surrounding power supplies automatically redistribute load to adjacent supplies, preventing blackout without manual intervention.
Installation and Maintenance Convenience
Heavy steel cabinets have long raised transportation and installation costs across the outdoor display industry. Compared with traditional waterproof iron cabinets, WC Series cabinets reduce weight by 28% and thickness by 24%, saving space and lowering both transportation and installation expenses. Each cabinet weighs 25 kg and measures 960*960*87 mm, with modules sized at 480*320 mm.
Maintenance access is equally considered. Modules can be serviced from either the front or the rear: front maintenance requires turning the module lock clockwise 90°, holding the handle, pushing forward, removing the module backward, and detaching the safety rope. Rear maintenance involves locating the four maintenance holes on the front of the module, turning the module lock counterclockwise 90°, removing the module, and detaching the safety rope. Power box maintenance follows its own sequence: opening the power box lock, maintaining the power supply, receiving card, and HUB board, then unscrewing eight power box fixing screws to remove the power box entirely.
Cable protection rounds out the convenience features. A built-in, concealed cable compartment prevents exposed wiring, which both improves appearance and avoids insect and rodent damage—directly addressing the pest-damage concern common to exposed outdoor wiring.
Product Lineup and Technical Specifications

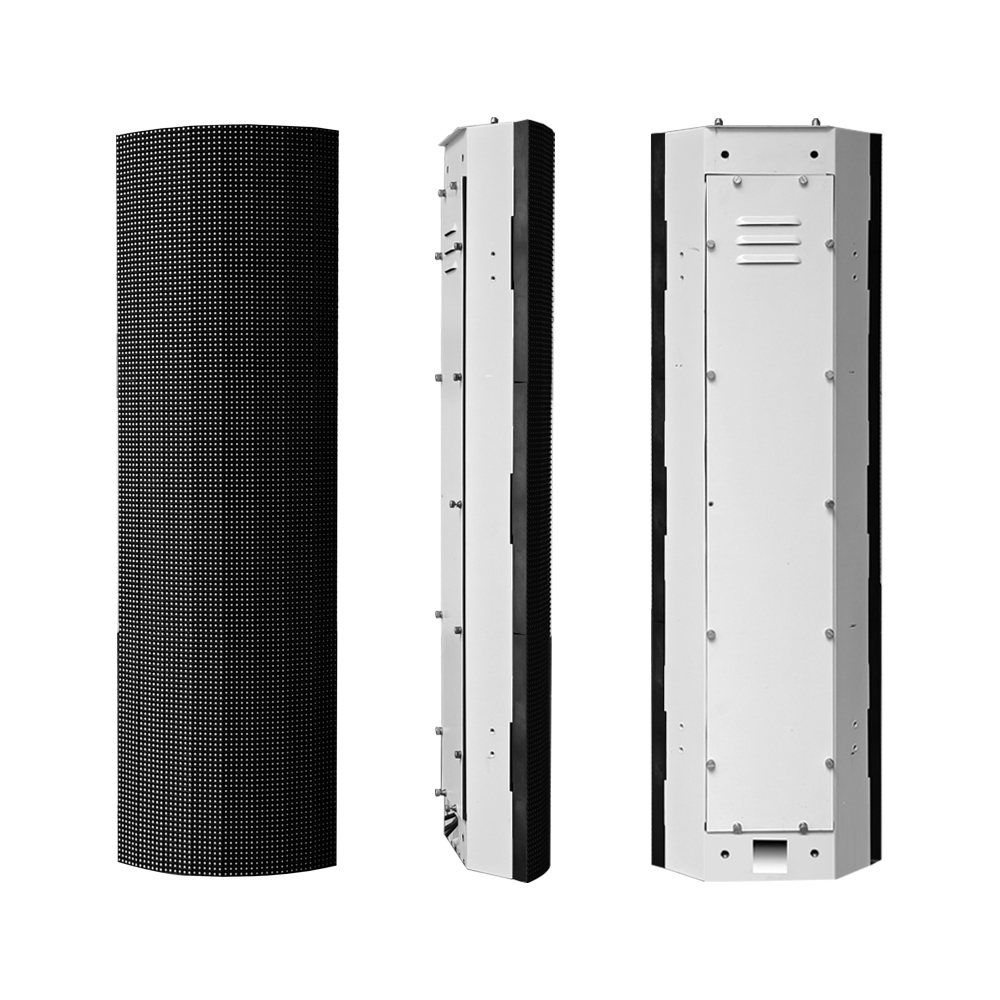

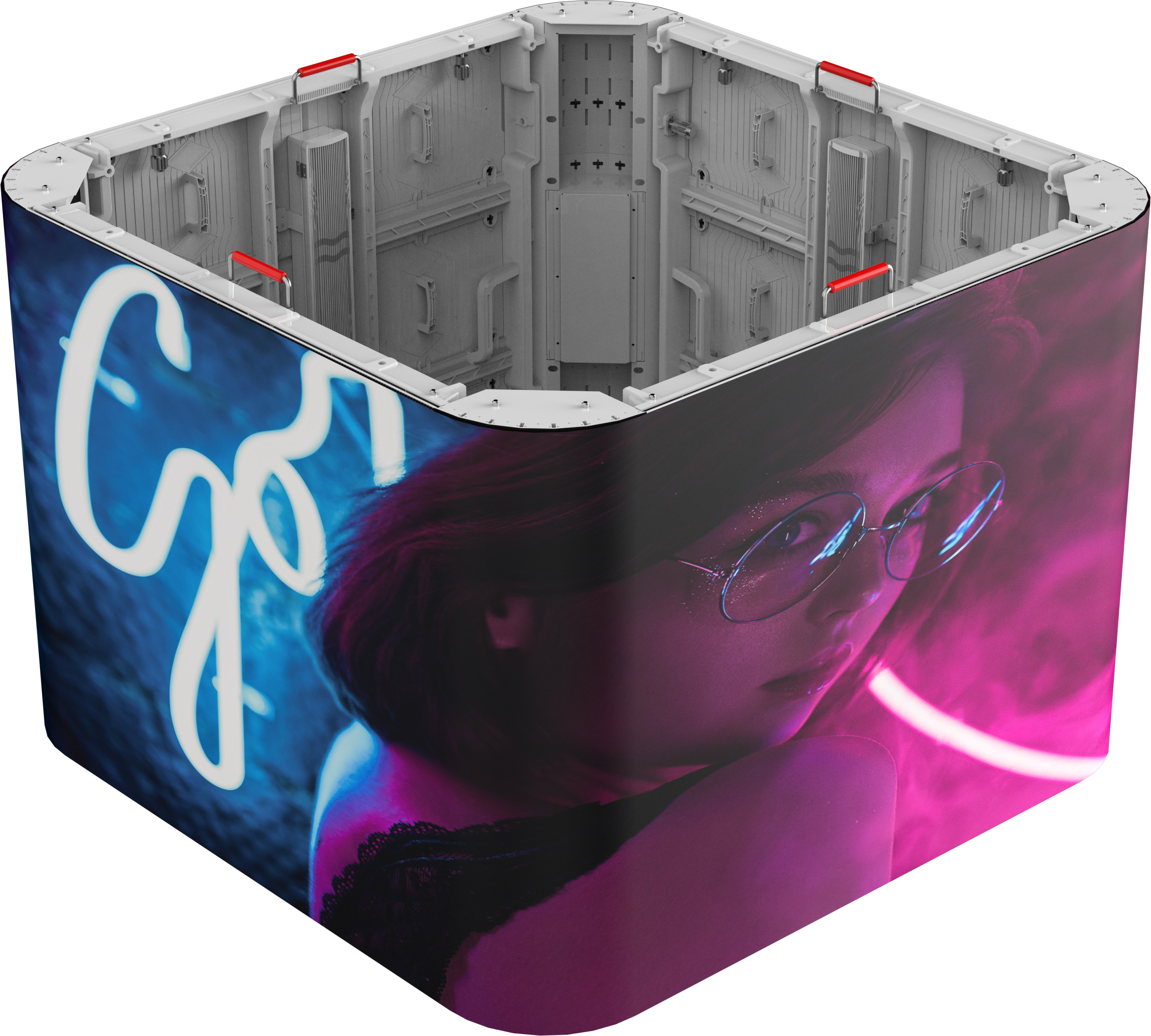

The WC Series currently includes five pixel-pitch models—WC4.44, WC 5.7, WC 6.67, WC8, and WC10—plus an optional glasses-free 3D solution. Across the lineup, brightness ranges from 5,500 to 10,000 nits, and refresh rates reach up to 7,680 Hz, which reduces flicker and improves video smoothness while ensuring clear images even in strong light. The glasses-free 3D configuration pairs standard WC Series cabinets with dedicated curved corner cabinets, sized at 320*960 mm with 80*320 mm unit boards, using C-shaped connecting plates and specified hardware to secure smooth corner transitions. Installation for curved configurations begins at the corner and proceeds to both sides to improve alignment.
All models support the A5S Plus receiving card, 400W branded power supplies, main and cascade power and network cables, and waterproof plugs that prevent water entry into aviation plugs and signal connectors.
Packaging and Delivery
Each unit ships in a wooden crate with an anti-static bag and anti-collision foam, with a recommended maximum loading of 8 units per crate. A factory inspection report is supplied per order, and a product certificate accompanies each wooden crate, giving buyers documentation they can verify against the physical shipment.
Why Whaley's WC Series Stands Out
For companies evaluating an IP66 aluminum LED cabinet factory, the WC Series from Whaley demonstrates how the four core pain points of outdoor LED deployment—energy consumption, fire risk, heavy cabinets, and maintenance difficulty—can be addressed through integrated engineering rather than isolated fixes. The combination of common-cathode power architecture, CNC integrated die-cast aluminum construction, IP66 protection, and documented front-and-rear maintenance procedures reflects a manufacturing approach built around the realities of outdoor operation. Backed by Shenzhen CanMingXing Technology Co., Ltd. and HK Whaley Technology Limited, the WC Series offers a technically documented alternative for organizations seeking outdoor LED displays that balance safety, energy efficiency, reliability, and ease of installation within a single aluminum cabinet platform.
